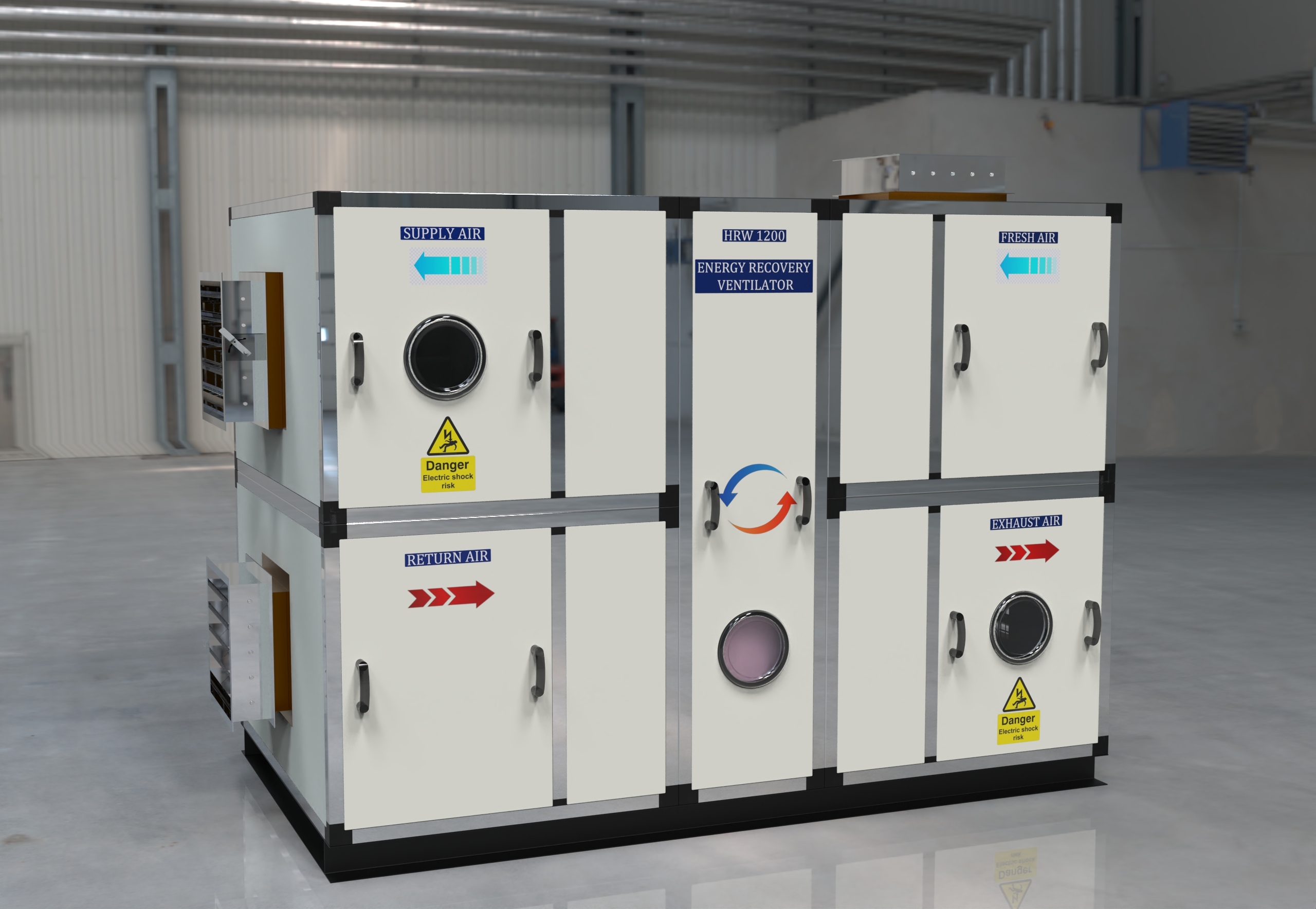

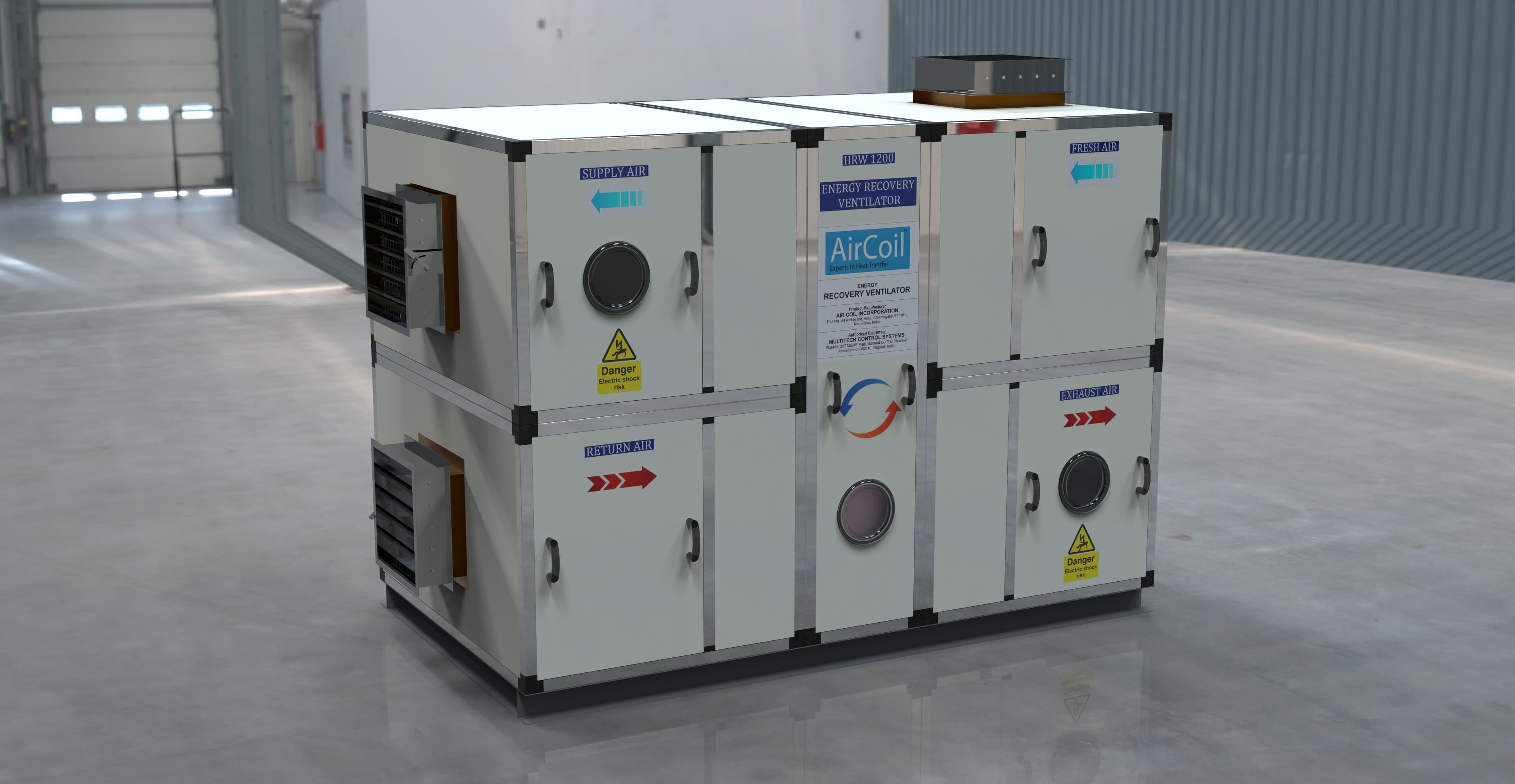

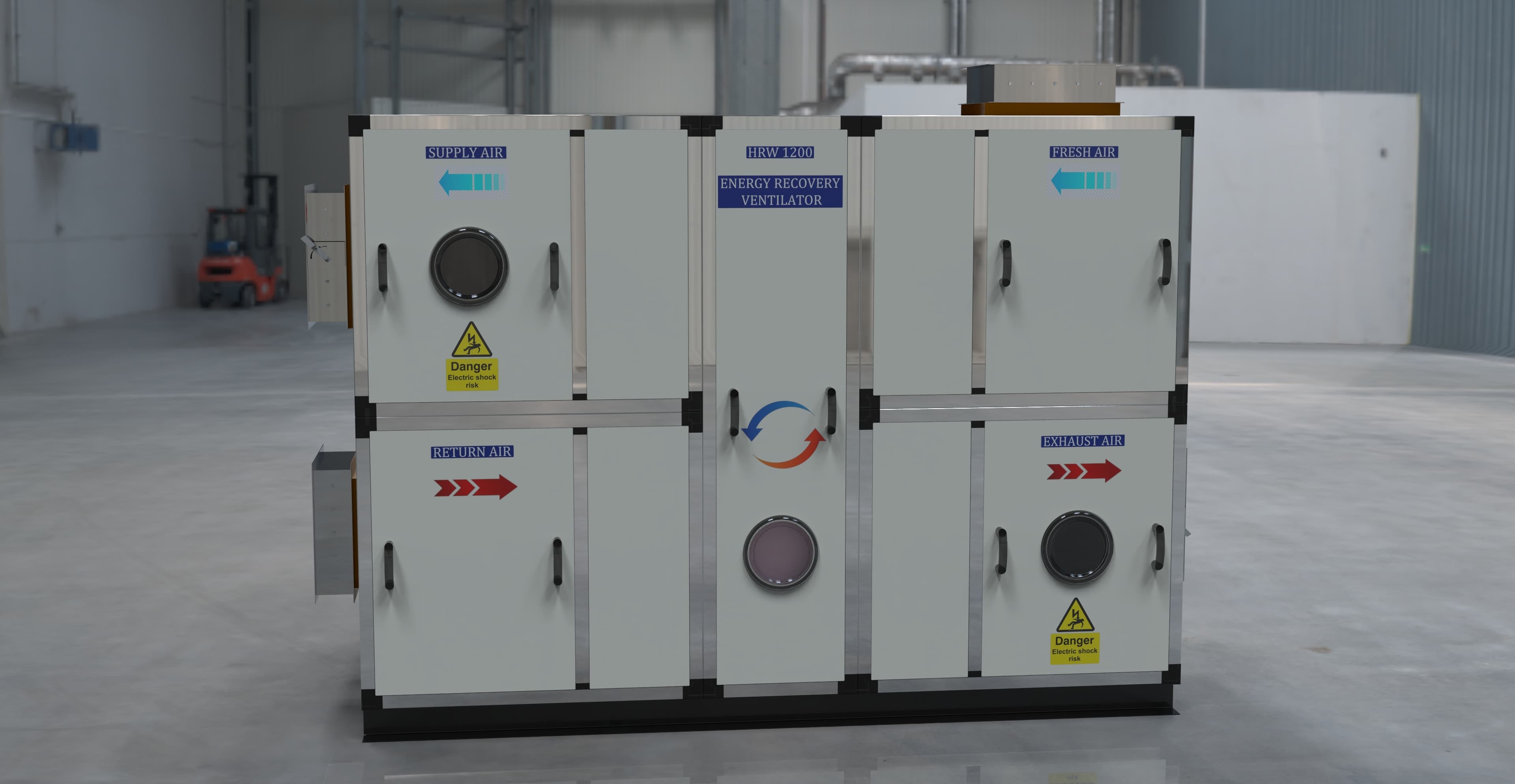

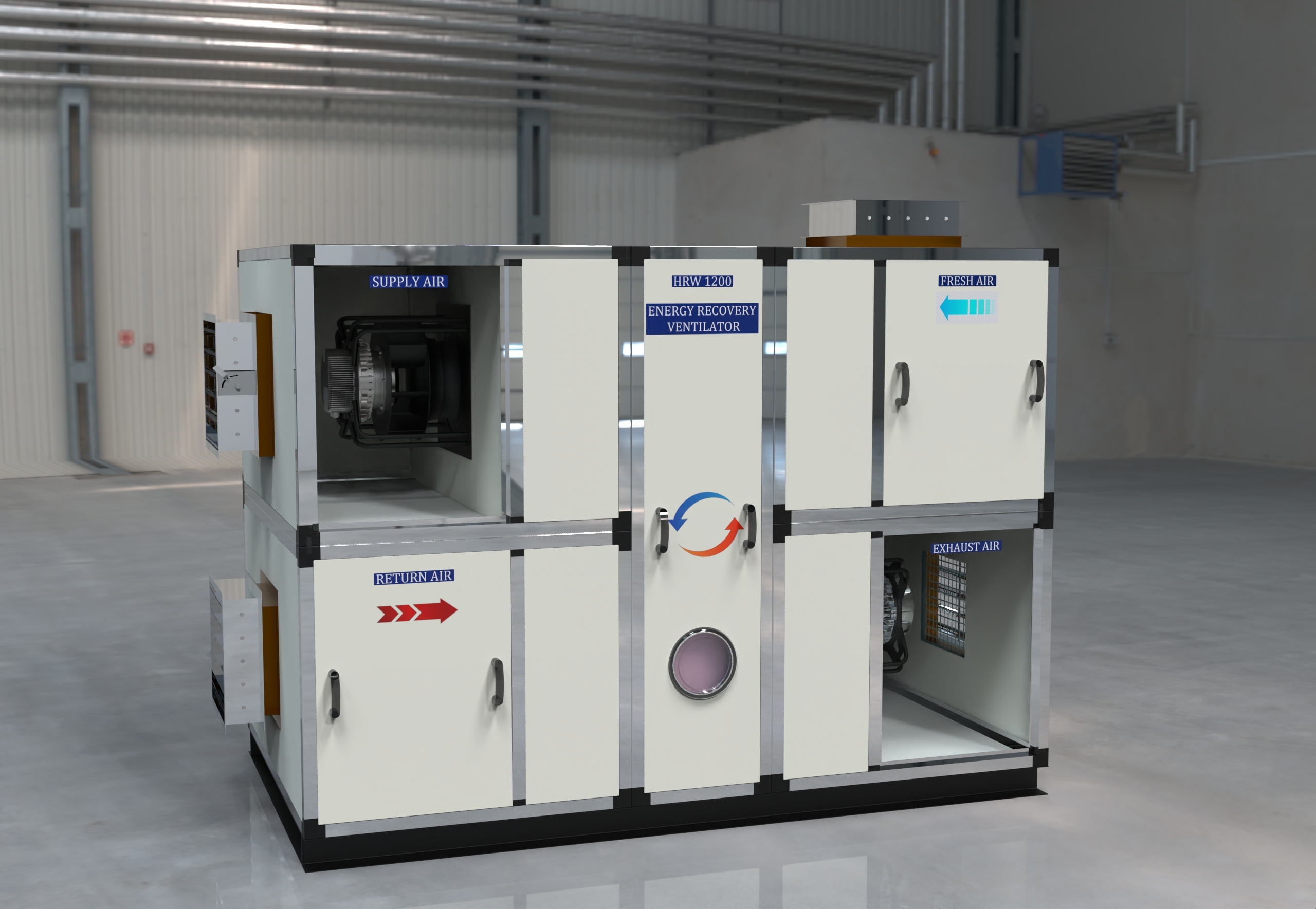

Energy Recovery Ventilator 3400CFM
Product Details:
- Weight 300 Kilograms (kg)
- Height 1800 Millimeter (mm)
- Usage Indoor air quality , Potato storage, warehouse , office , Hospital
- Product Type Energy Recovery ventilator , ERV ,
- Width 1400 Millimeter (mm)
- Size 3400CFM
- Length 3400 Millimeter (mm)
- Click to View more
Energy Recovery Ventilator 3400CFM Price And Quantity
- 1 Number
- 250000.00 - 315000.00 INR/Number
- 295000 INR/Number
Energy Recovery Ventilator 3400CFM Product Specifications
- 1400 Millimeter (mm)
- Ventilation
- 3400CFM
- Energy Recovery ventilator , ERV
- 5780 m3/hr
- Indoor air quality , Potato storage, warehouse , office , Hospital
- Aluminum
- 415 Volt (v)
- 3400 Millimeter (mm)
- white
- Other
- Industrial
- 4400 Watt (w)
- 300 Kilograms (kg)
- 1800 Millimeter (mm)
Energy Recovery Ventilator 3400CFM Trade Information
- ICD Bangalore
- Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)
- 30 Number Per Month
- 4 Week
- Yes
- Contact us for information regarding our sample policy
- Wooden Packing
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- All India
Product Description
Highly efficient heat recovery units up to 80% with rotary wheel, forward curved /backward curved blades/direct driven/belt driven. Pre-configured control system for easy start-up. The casing is made of 25 mm, self-supporting Double skinned panels. The outer skin is made from coated steel with a high resistance against corrosion and UV light and the inner skin is made from galvanised steel. Support feet are made from GI. Easy access to all components via large, hinged front doors. Square inlet and discharge connection flanges.
KEY FEATURES
Unit made Aluminium profile & Corner Joints
Inside sheet made of 0.5mm thickness GI
Outside sheet made of 0.5mm thickness pre-painted GI
25mm thickness Polyurethane foam with 48kg/m3 density
Fasteners are made of Stainless Steel 304.
200mm thick AirCoil Rotor.
High heat recovery performances.
Less space requirements.
Less self-consumed energy.
Low pressure drops.
Power for rotor drive is negligible.
Forward / Backward Curved blowers on Supply & Return Side.
Inbuilt Control panel (Optional)
25mm Thick G4 Filters on Supply & Return Side.
Complete unit mounted on 70/100mm Base Frame made of 1.5-2mm thickness GI
Wooden Pallet, Corrugated packing, Shrink Wrap shall be provided in packing.
|
Model Number: |
ERV3400 |
|
Supply Air Flow Rate (CFM) |
3400 |
|
Supply Air Total Static Pressure (Pa) |
900 |
|
Return Air Rate (CFM) |
3400 |
|
Return Air Total Static Pressure (Pa) |
900 |
|
Rotor Size |
HRE/1200/200/1.7 |
|
Energy Effectiveness |
>70% |
|
Controller |
Electrical Starter panel with Remote Start /stop (Optional) |
|
Working Temperature Range |
-10 to +60C |
|
Maximum Unit Power (KW) |
7.52(3.7+3.7+0.12) |
|
Sound Level |
70DbA |
|
Phase /Voltage/Hertz |
3Ph/415V/50Hz |
