Low RH Desiccant Dehumidifier

Product Description

AirCoil provides industrial dehumidification solutions, tailored to your needs, for a wide range of applications and markets. Our desiccant rotor dehumidification systems effectively remove moisture from the air which allows you to control humidity consistently and precisely in your industrial processes to very low levels. Our commercial and industrial dehumidifier solutions are used in the food and pharmaceutical industries, lithium-ion battery production, preservation and protection of equipment, materials, documents, art, and more. For your industrial desiccant dehumidifier solutions, contact AirCoil.

Our industrial dehumidifiers use a desiccant wheel, where air passes through the flutes of the material, contacting the desiccant. Incoming process air gives off its moisture to the desiccant and is dry as it leaves the wheel. The humidity-loaded wheel rotates slowly, smaller airstream which has been heated.

This smaller exhaust airstream, known as reactivation air, warms the desiccant. The warmed desiccant gives off its moisture which is then carried away by the reactivation air. The newly dried desiccant material is rotated back into the process air, where it absorbs moisture once again.

Due to their flexibility and modular design, our industrial desiccant dehumidifiers can be used for a wide range of applications where it is necessary to control moisture and temperature. We work closely with you to optimize the design of your desiccant industrial dehumidifier and can provide the perfect dehumidification solution for your specific needs.

Key Features of standard units

• Heavy gauge sheet metal body
• Totally self-contained unit
• CNC fabricated
• Fasteners are made of Stainless Steel 304.
• HIGH MOISTURE REMOVAL SILICA DESICCANT ROTOR

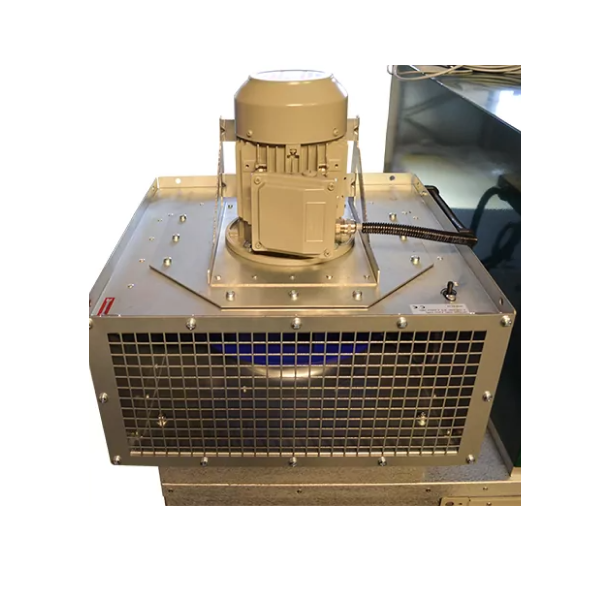

• Direct driven fan on Supply & Return Side
• Inbuilt Control panel

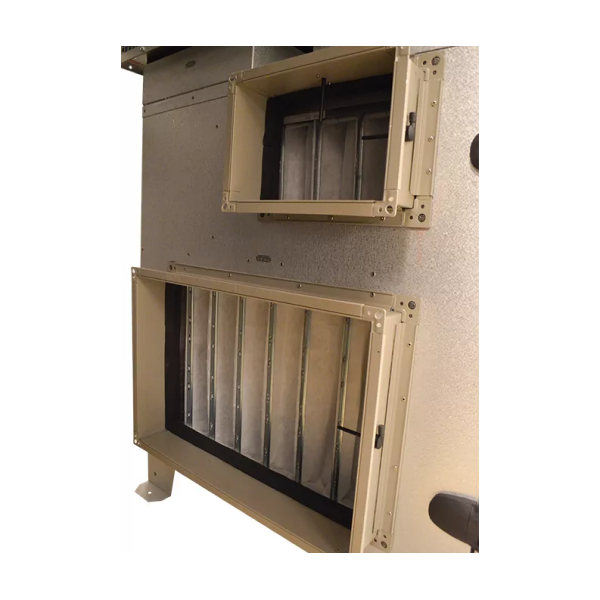

• G4 grade leak tight filters on supply & regeneration
• Regeneration with Electrical heater
• Unit Suitable for continuous operation
• Auto-manual selector switch
• Geared volume control damper
• Smaller footprint
• Rotors are water washable
• Minimised Air Leakage with Silicon P-seal
• Insulated in the Reactivation side
• Wooden pallet packing

Optional

• Humidistat 10-90%RH
• 4.3 inch or 7-inch touch screen display
• Steam Coil for Regeneration
• Pre-Cooling Coil
• Post Cooling coil
• Complete wooden packing
• Variable Frequency drives for Process air
• High efficiency bag filters
• High static blowers
